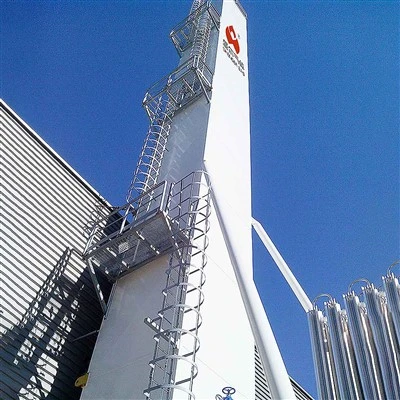

Cryogenic Air Separation Nitrogen Plant For Petrochemical Industry
In petrochemical production, nitrogen is never just a utility. From purging, blanketing, and catalyst regeneration to product conveying, the purity, pressure, and continuous supply of nitrogen directly impact plant safety and operating costs. However, a cryogenic air separation nitrogen plant for petrochemical industry is not a standard off-the-shelf unit. It must adapt to different processes-refining integration, ethylene cracking, hydrocracking-in terms of design, energy control, and load flexibility. That requires real domain expertise.
Working Principle: Cryogenic Distillation – The Most Mature Route for Large-Scale High-Purity Nitrogen
Shenger Gas cryogenic nitrogen plants separate air based on boiling point differences of air components. After compression, pre-cooling, and purification (removing H₂O, CO₂, C₂H₂, etc.), the air enters the main heat exchanger against returning cold gas streams, cooling to approximately -170°C or lower. Inside the distillation column, nitrogen (boiling point -196°C) and oxygen (-183°C) separate through vapor-liquid contact: high-purity nitrogen (up to 99.999%) is obtained at the top, while oxygen-enriched air is vented or recovered at the bottom.
This principle explains why cryogenic technology differs fundamentally from PSA or membranes: cryogenic delivers high purity (≥99.999%), large flow capacity (500–50,000+ Nm³/h), and liquid nitrogen backup simultaneously, and it handles raw air fluctuations well. For continuous petrochemical operations, that means irreplaceable safety redundancy.
Technical Parameters & Performance Indicators (Typical Ranges)
The following are standard configuration ranges for Shenger Gas petrochemical-grade units. Site-specific customization is available:
|
Parameter |
Typical Range |
Notes |
|---|---|---|
|
Nitrogen purity |
99.5% ~ 99.9999% |
O₂ content ≤10ppm ~ 0.5ppm |
|
Flow rate (gaseous N₂) |
500 ~ 50,000 Nm³/h |
Larger capacity on request |
|
Liquid nitrogen output |
0 ~ 30% of gaseous equivalent |
For backup or sale |
|
N₂ discharge pressure |
0.05 ~ 3.5 MPa(g) |
Direct to header, no recompression |
|
Ambient temperature range |
-30°C ~ 45°C |
Designed for varied climates |
|
Start-up to on-spec N₂ |
≤12 hours (cold start) |
Fast standby option available |
Energy Consumption – What Petrochemical Users Actually Care About
Petrochemical plants often run 8,000+ hours per year for over a decade. Electricity cost dominates the lifecycle. Shenger Gas controls specific energy consumption through:
-
Specific power consumption: 0.38 – 0.55 kWh/Nm³ N₂ (purity 99.99%, atmospheric dew point ≤-60°C)
Better than industry average of 0.45–0.65 for similar scale and conditions
-
Turndown energy performance: Specific consumption increases less than 12% between 60% and 105% load
- Cold box holdover: Static evaporation rate ≤0.5%/day (for liquid nitrogen), exceeding HG/T 4682 standard
Actual operating data: A 2,000 Nm³/h nitrogen station for a hydroprocessing unit ran 8,400 hours/year at 0.41 kWh/Nm³ – over 40% lower than the previous PSA solution (due to PSA's frequent regeneration and purity decay).
Why Cryogenic, Not PSA or Membrane, for Petrochemicals?
|
Feature |
Cryogenic |
PSA / Membrane |
|---|---|---|
|
Purity stability |
99.999% for years, no decay |
Molecular sieve poisoning → purity drop |
|
Co-produces liquid N₂ |
Yes (required for backup) |
No |
|
Tolerance to feed fluctuations |
High (column buffer) |
Low |
|
Specific energy at large flow |
Low |
High (especially ≥2000 Nm³/h) |
A plant shutdown can cost millions in a single event. A cryogenic air separation nitrogen plant for petrochemical industry is valuable not because it's cheap, but because it does not stop.
Customization Capability – From Process Connections to Hazardous Area Design
Shenger Gas does not sell "standard models." We engage during your process design phase:
-
Hazardous area & environment: Exd IIB T4 up to Exia IIC available, Zone 1/Zone 2 compliant
-
Cooling method: Water-cooled (circulating or once-through) / Air-cooled (for water-scarce regions)
-
Electrical & control system: Supports Modbus TCP, Profibus DP, OPC UA; connects to DCS/PLC (Honeywell, Yokogawa, Supcon, etc.)
-
Backup system integration: Liquid N₂ tank + vaporizer + auto-changeover, response ≤3 seconds
-
Special requirements: Oil-free design, low noise (≤85 dBA), typhoon/seismic protection
We deliver "process package + equipment + site installation + commissioning + training." Alternatively, we supply partial systems (e.g., cold box & column only, with your own compressor set).
Service Capability – Full Lifecycle, Not a One-Time Sale
Petrochemical customers buy "ten years of reliable operation." Shenger Gas service scope:
-
Remote support: 24/7 diagnostics (Wireless Data Interface Reserved)
-
On-site response: Within 48 hours domestically; overseas as negotiated (typically ≤7 days)
-
Spare parts strategy: Critical parts recommendation (molecular sieve, expander bearings, instrument valves) with safety stock guidance
-
Scheduled inspections: At least one performance test per year, with energy optimization report
-
Revamp & expansion: Increase N₂ capacity or liquid ratio on existing foundation – no need to rebuild the cold box
Whether you are tendering a cryogenic air separation nitrogen plant for petrochemical industry for a new project or retrofitting an existing nitrogen station for energy savings or purity upgrade, Shenger Gas can provide a site-specific simulation report including material balance, energy curve, and payback period. We do not hide that initial investment is higher than PSA. But we are willing to calculate together: what is the actual total cost over three years?
