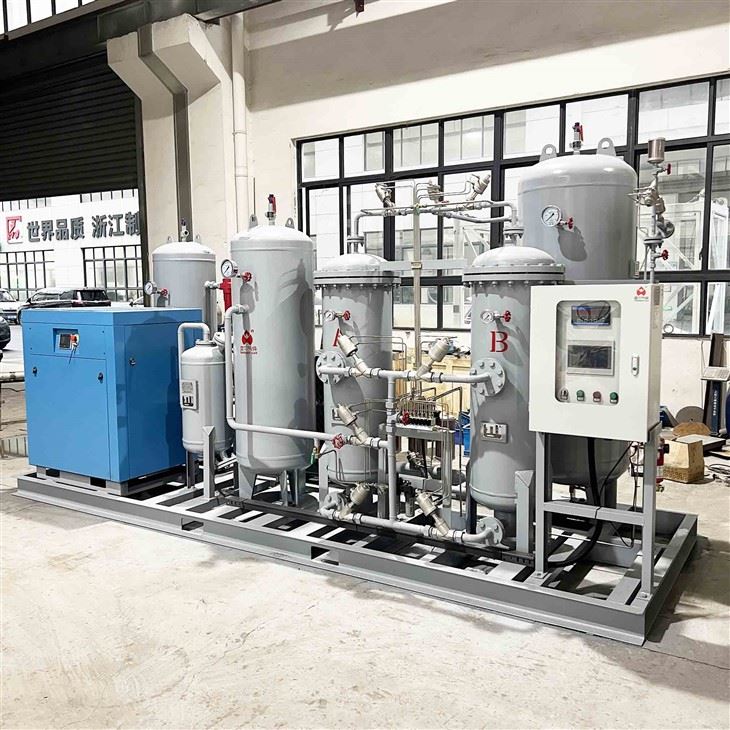

Nitrogen Generator For Oil & Gas Field
Oil and gas field operations need nitrogen where air is unsafe, corrosive, or process-intolerant. The package must handle dust, hydrocarbons, hydrogen sulfide, vibration, remote locations, and wide ambient swings. A useful system is not only an air separator; it is an integrated skid with pretreatment, separation, buffering, analysis, and safety controls.
Working Principle
A nitrogen generator for oil & gas field commonly uses pressure swing adsorption (PSA). Clean, dried compressed air enters one of two carbon molecular sieve beds. Oxygen, moisture, and carbon dioxide are preferentially adsorbed, while nitrogen passes into a buffer tank. When the bed approaches saturation, valves switch, pressure equalizes, and the bed regenerates by depressurization. PLC sequencing and online oxygen analysis keep purity stable. Membrane systems are also used for lower-purity duties, such as tank blanketing, because they are compact and have few moving parts. Cryogenic separation remains suitable for very large flows and very high purity, but PSA and membrane packages are usually preferred for modular field installation.
Performance and Technical Data
The table gives typical engineering ranges. Final selection depends on required purity, flow profile, altitude, ambient temperature, inlet air quality, and explosion-proof classification.
| Item | Typical range / option |
|---|---|
| Purity | 95–99.999% (O₂ 5–0.001%) |
| Flow | 5–3,000 Nm³/h per train; multi-train for higher capacity |
| Dew point | -40 to -70 °C; optional -80 °C |
| Ambient temperature | -20 to +55 °C; low-temperature package available |
| Inlet air temperature | 5–45 °C |
| Energy consumption | 0.28–0.55 kWh/Nm³ at 95–99.9%; purity and outlet pressure affect demand |
| Inlet pressure | 0.6–1.0 MPa |
| Outlet pressure | 0.1–0.8 MPa, regulated |
| Control | PLC, HMI, Modbus RTU/TCP, remote I/O |
| Materials | Carbon steel, SS304/SS316; NACE-compliant wetted parts optional |
| Explosion protection | ATEX/IECEx Ex d IIB T4, Ex e |
| Noise | ≤75 dB(A) |
For a nitrogen generator for oil & gas field, energy use is best assessed at the required purity and pressure, not at a single nominal figure. Higher purity, deeper dew point suppression, and higher outlet pressure increase air demand and power. Heatless dryers, refrigerated dryers, coalescing filters, and activated carbon filters protect the molecular sieve and extend service life. A well-designed control loop also avoids unnecessary cycling during low-demand periods.
Industrial Applications
A nitrogen generator for oil & gas field supports inerting, purging, pressure testing, and blanketing where oxygen ingress is unacceptable. Typical duties include pipeline displacement, storage tank and flare header inerting, compressor seal gas, wellhead and workover operations, gas lift, completion, and nitrogen-assisted pressure maintenance. In sour service, wetted materials and seals must be selected for H₂S exposure. Offshore, desert, and cold-climate packages may require corrosion protection, enclosure ventilation, winterization, and lifting frames.
Certification, Customization, and Service
Systems can be supplied to ISO 9001, ISO 14001, ISO 45001, CE, PED, ASME VIII, and IECEx/ATEX requirements. Customization covers flow, purity, pressure, dew point, redundancy, container or trailer mounting, remote monitoring, and NACE-compliant materials. Service scope includes gas balance calculation, P&ID and 3D design, FAT, installation supervision, commissioning, operator training, spare parts, remote diagnostics, and preventive maintenance.
At Shenger Gas, a nitrogen generator for oil & gas field is engineered as a field-ready package, with pretreatment, separation, controls, and safety logic matched to the site gas demand. The company supports selection, fabrication, testing, and long-term operation so the unit can run steadily under demanding oilfield conditions.
